How can I get a list of all classifications of the tables from my Subset project file

I have a Subset project file and would like to obtain a list of the table classifications. How can I extract this information from my template?

Step-by-step guide

  • Start Windows Powershell (use "Windows" key +"R" → powershell)
    Then type this command:

  • ([xml](Get-Content -Path <SubSetProjectFile>)).project.states.state.pattern  |select schema,table,classification


    schema table                     classification
    ------ -----                     --------------
    dbo    DWH_CUSTOMERS_HIS         Start
    dbo    DWH_SUPPLIER_CONTACTS_HIS Unused
    dbo    DWH_ORDERS_HIS            Subset
    dbo    DWH_PRODUCTS_HIS          Unused
    dbo    DWH_SUPPLIER_PRODUCT_HIS  Unused
    dbo    DWH_SERIALS_HIS           Unused
    dbo    DWH_CONTRACTS_HIS         Unused
    dbo    DWH_LOCATIONS_HIS         Subset
    dbo    DWH_TASKS_HIS             Unused
    dbo    DWH_CONTRACT_DETAILS_HIS  Unused
    dbo    DWH_SUPPLIERS_HIS         Unused

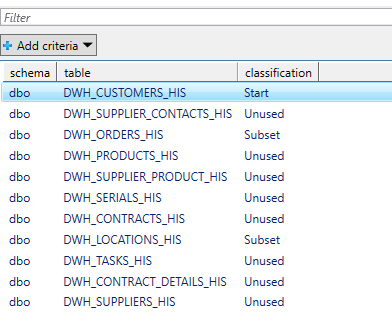

  • And if you like a gridview add | Out-gridview → ([xml](Get-Content Path <SubSetProjectFile>)).project.states.state.pattern  |select schema, table, classification | out-gridview


You can add or or remove columns from your output. Available fields on this Path are:

  • classification

  • connection

  • name

  • table

  • schema
