Requirements
Operating System
DATPROF Subset requires one of the following:
Microsoft Windows 7 or later
Microsoft Windows Server 2012 or later
Additionally, the .NET Framework 4.8 must be installed, and the user installing the software must have the necessary permissions to install applications.
Hardware
CPU: x86 1 GHz or better
Memory: At least 4 GB RAM
Disk Space: At least 1 GB of free disk space
Supported Databases
DATPROF follows the software lifecycle guidelines set by database vendors. This ensures compatibility and support with the latest versions of database systems while maintaining the stability and reliability of the tool. By aligning with the database vendors' lifecycle, DATPROF ensures that its solutions stay up-to-date with new features, security patches, and performance enhancements.
Database Type | Supported Versions |
---|---|
Oracle | Version 11.2 and later |
Microsoft SQL Server | Version 2008 (not for Runtime) Version 2012 Version 2014 Version 2016* Version 2017* Version 2019* Versions newer than SQL Server 2019* |
DB2 LUW | 10.5 and later |
DB2 for iSeries | 7.2 7.3 7.4 |
DB2 for z/OS | 13.0 and later |
PostgreSQL | 9.5 and later |
MySQL | 8.0 |
MariaDB | 10.4 |
*Check the Powershell module remarks
Database Requirements and Permissions
Oracle RDBMS
Permissions
Source Schema
Select permissions to read the data
Target Schema
If the Subset User is the TABLE_OWNER
Minimum System Privileges
CREATE SESSION
CREATE TABLE
CREATE INDEX
CREATE databaselink (or have one pre-created from the Target Schema to the Source Schema by your DBA)
Minimum Object privileges
EXECUTE permission on dbms_random package
EXECUTE permission on dbms_metadata package
Quota
Unlimited tablespace
Multiple schemas
These privileges should be extended when using tables in multiple schemas.
In such a scenario, the Subset user also requires:
to have been GRANTED the SELECT_CATALOG_ROLE
CREATE ANY TABLE
CREATE ANY INDEX
DROP ANY INDEX
DROP ANY TABLE
Subset uses the ALL_TAB_PRIVS view to get the list of objects across all selected schemas.
Sometimes it is necessary to grant select on one table in a schema to make the schema appear in Subset using the ALL_TAB_PRIVS.
When you create your own procedures, functions, use sequences, or reference views in your scripts, it is essential to ensure that the Subset user is granted the necessary permissions to access and execute these elements.
Microsoft SQL Server
Permissions
To perform database subsetting, the user must have dbo permissions in the target database.
The source database must also permit Ad hoc distributed queries.
Additionally, if you have views with Schemabinding enabled, it will not be possible to execute the Recreate scenario.
Powershell module dependency
To retrieve DDL information from Microsoft SQL Server, DATPROF Runtime uses a PowerShell module. Over time, Microsoft has replaced the original "SQLPS" module with the "SqlServer" module.
As of version 4.0, the SqlServer module is included with DATPROF Subset and no longer needs to be installed manually.
Microsoft PowerShell version 5 or later is required to use the SqlServer module.
Open a PowerShell window on your system as administrator.
To check your current PowerShell version, run the following command:
CODE$psversiontable.Psversion
If the major version is lower than 5, you need to upgrade PowerShell. To do so, download and install Windows Management Framework version 5.x from the following link: Windows Management Framework 5.1
Linux systems
When using Runtime on a Linux system, PowerShell must be installed, and the SQL Server PowerShell module needs to be manually installed.
To install PowerShell on a Linux system, refer to the Microsoft documentation: Install PowerShell on Linux.
Once PowerShell is installed, follow these steps to install the SQL Server module:
Open a PowerShell window on your system (either as the user running Runtime or as root).
Execute the following command to install the required module:
CODEInstall-Module -Name SqlServer
This will install the necessary SQL Server module for PowerShell, enabling you to manage SQL Server from your Linux environment.
DB2 LUW
Requirements
To use DATPROF Subset for DB2 Linux, Unix, and Windows (LUW), the following IBM software is required on the client PC:
IBM DB2 Data Server Driver Package
Once installed, DATPROF Subset will use the 32-bit DLLs located in the subfolders netf40 or netf40_32. These DLLs are necessary for establishing a connection and working with IBM DB2 databases.
Permissions
Source Database:
The user should have read (select) permissions for all tables that need to be subsetted in the source database.
Target Database:
CONNECT: Permission to establish a connection to the database.
DATAACCESS: Permission to access the data within the database.
CREATETAB: Permission to create tables, which is required during the data masking process.
DB2 iSeries
Requirements
To use DATPROF Subset with DB2 iSeries, you should have one of the following installed:
IBM i Access for Windows 7.1, or
IBM i Access Client Solutions
This software can be obtained from the IBM website.
Permissions
The user responsible for masking the database must have DBADM (Database Administrator) permissions in the database schema targeted for data masking.
DB2 for z/OS (Mainframe)
Requirements

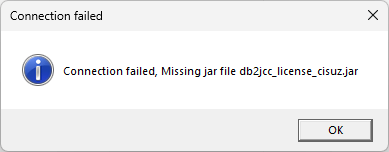

In order to use Subset with DB2 for z/OS databases, the user must possess their own db2jcc_license_cisuz.jar file - This is the IBM Data Server for JDBC and SQLJ license file that allows access to the database through the JDBC protocol. This is a separate license that must be acquired through IBM. This file must then be placed in the Drivers sub-folder of the Subset installation folder. If this is not done, the user is greeted by the following error upon trying to test a connection to the database:
Permissions
Source database
The user should have the permission to read (select) all tables to be subsetted in the source database.
Target database
The user should have DBADM permissions in the target database.
PostgreSQL
Requirements
You should install the Postgres foreign-data wrapper (postgres_fdw) in each database that you will use as a target database. The following statement must be executed as a super user in each target database:
CREATE EXTENSION postgres_fdw;
Permissions
Source database
The user should have the permission to read (select) all tables to be subsetted in the source database.
Target database
The user should have 'Super User' right to perform all necessary steps
